1.12-inch IPS TFT LCD Screen | 50×160 Dot Matrix Serial Screen with GC9D01 Driver,

  • 1.12-inch IPS TFT LCD Screen | 50×160 Dot Matrix Serial Screen with GC9D01 Driver,
  • 1.12-inch IPS TFT LCD Screen | 50×160 Dot Matrix Serial Screen with GC9D01 Driver,
  • 1.12-inch IPS TFT LCD Screen | 50×160 Dot Matrix Serial Screen with GC9D01 Driver,
  • 1.12-inch IPS TFT LCD Screen | 50×160 Dot Matrix Serial Screen with GC9D01 Driver,
  • 1.12-inch IPS TFT LCD Screen | 50×160 Dot Matrix Serial Screen with GC9D01 Driver,
  • 1.12-inch IPS TFT LCD Screen | 50×160 Dot Matrix Serial Screen with GC9D01 Driver,
Miejsce pochodzenia CHINY
Nazwa handlowa HuaXin
Orzecznictwo ISO14001/ISO9001/IATF16949
Numer modelu HX112FHD010
Minimalne zamówienie 1 ~ 1000
Cena $2~$1.6
Szczegóły pakowania Blister+piankowy pudełko+torba bąbelkowa+wewnętrzny karton+Master Carton
Czas dostawy 6 tygodni ~ 8 tygodnie
Zasady płatności T/t
Możliwość Supply 200 tys. miesięcznie

Skontaktuj się ze mną, aby otrzymać bezpłatne próbki i kupony.

WhatsApp:0086 18588475571

czat: 0086 18588475571

Skype'a: sales10@aixton.com

W razie jakichkolwiek wątpliwości zapewniamy całodobową pomoc online.

x
Szczegóły Produktu
Technologia wyświetlania moduł wyświetlacza lcd Nazwa TFT LCD
Rozmiar 1,12 cala Rezolucja 50 × 160
Jasność 350c/d Interfejs 4 linie SPI
Wyświetl kąt Wszystko
Podkreślić

1.12-inch IPS TFT LCD screen

,

50×160 dot matrix serial screen

,

bar type TFT with GC9D01 driver
Zostaw wiadomość
opis produktu
1.12-inch IPS TFT LCD Screen | 50*160 Dot Matrix Serial Screen with GC9D01 Driver
Special for Industrial Equipment Status Bars / Smart Wearables, High Definition, Low Power Consumption
Product Parameters
Part No. HX112FHD010
Display Size 1.12 inch TFT display
Outline Size (mm) 10.8(H)*32.18(V)*2.11(D)(mm)
AA Size (mm) 8.49*27.17(mm)
Working Temperature -20°C to 70°C
Storage Temperature -30°C to 80°C
Resolution 50*160
Interface 4 LINE SPI
Driving IC GC9D01
Brightness 350C/D
View Angle All

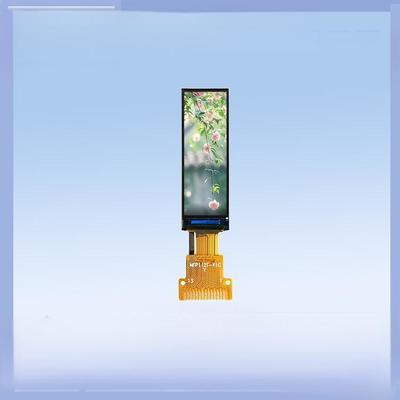

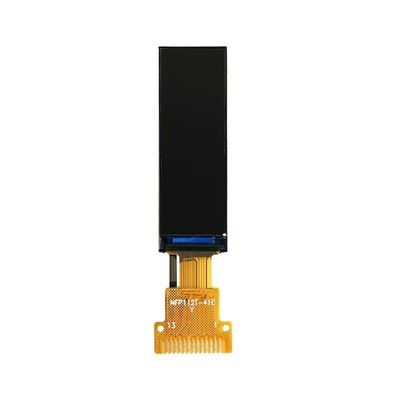

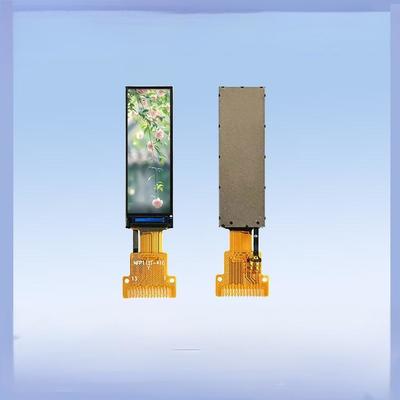

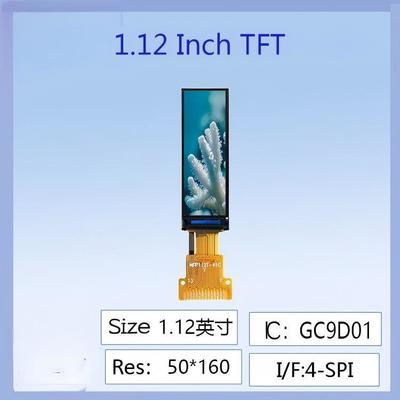

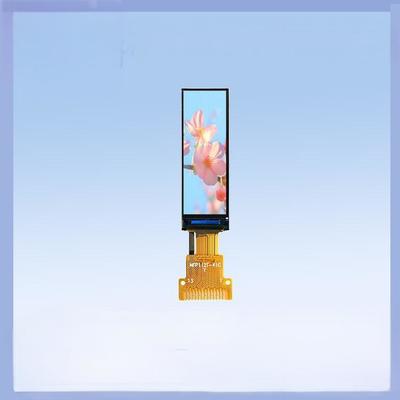

Product Images
1.12-inch IPS TFT LCD Screen | 50×160 Dot Matrix Serial Screen with GC9D01 Driver, 0 1.12-inch IPS TFT LCD Screen | 50×160 Dot Matrix Serial Screen with GC9D01 Driver, 1 1.12-inch IPS TFT LCD Screen | 50×160 Dot Matrix Serial Screen with GC9D01 Driver, 2 1.12-inch IPS TFT LCD Screen | 50×160 Dot Matrix Serial Screen with GC9D01 Driver, 3 1.12-inch IPS TFT LCD Screen | 50×160 Dot Matrix Serial Screen with GC9D01 Driver, 4
Technical Drawings
1.12-inch IPS TFT LCD Screen | 50×160 Dot Matrix Serial Screen with GC9D01 Driver, 5 1.12-inch IPS TFT LCD Screen | 50×160 Dot Matrix Serial Screen with GC9D01 Driver, 6
TFT Product Knowledge
1.12-inch IPS TFT LCD Screen | 50×160 Dot Matrix Serial Screen with GC9D01 Driver, 7 1.12-inch IPS TFT LCD Screen | 50×160 Dot Matrix Serial Screen with GC9D01 Driver, 8
Company Information
Huaxin Technology (Enshi) Co., LTD

Hubei, Enshi | Founded: 2009

High technology enterprise specializing in research, development, production and sales of LCD, LCM, TFT, backlight, and OLED displays.

Company Advantages:
  • Cost-effective inland factory location
  • Advanced equipment for stable quality
  • Fully automated processes for efficiency
  • 20+ years of LCD industry experience
  • Custom product design capabilities
Certifications:
  • ISO14001
  • ISO9001/IATF16949
  • SGS certified LCD modules
Product Portfolio:
  • LCD: VA, TN, HTN, STN, FSTN, CSTN series
  • LCM: COB, TBA, COG, TP, LED backlight series
Company Statistics:
  • Registered capital: 20 million
  • Current staff: 500+
  • R&D accounts for 10%
  • QC accounts for 15%
Production Capacity
Annual Production Capacity 2021 (Current) 2022 (Goal) 2023 (Challenge) 2024 (Challenge) 2025 (Challenge) Remark
LCD Production 4.5 9 9 9 9 Unit: thousands of logarithms/Day
LCM Production 70 150 300 450 450 Unit: Thousand piece/Day
Backlight Production 100 200 300 500 500 Unit: Thousand piece/Day
OLED Production 10 20 30 40 50 Unit: Thousand piece/Day
Product Applications
  • Car navigation & printer
  • Video call & advertising
  • Automotive & medical devices
  • Fitness equipment & handheld devices
  • Industrial control and home appliance
TFT Display Characteristics
  • Image Quality: Excellent with high resolution, sharpness, and color accuracy
  • Response Time: Fast switching of pixels
  • Viewing Angles: Wide angles with minimal color shift
  • Energy Efficiency: Lower power consumption than other technologies
  • Size and Flexibility: Available in various sizes for different applications
  • Backlighting: Typically uses LED backlighting
  • Applications: Wide range of industrial and commercial uses
TFT Display Limitations
  • Viewing Angles: Some models have limited optimal viewing angles
  • Contrast Ratio: May be limited compared to other technologies
  • Power Consumption: Backlighting increases power needs
  • Response Time: Potential motion blur in fast-moving images
  • Flexibility: Limited flexibility in some designs
  • Color Gamut: May be narrower than some alternatives
